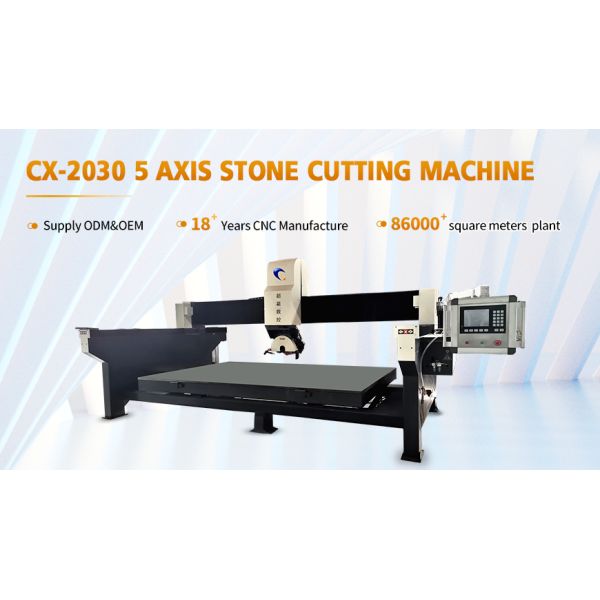

5 Axis Cnc Marble And Granite Bridge Saw Cutting Machine For Natural Rock Carving

Place of Origin : Shandong, China

Brand Name : GTS

Price : CN¥175,437.60/sets 1-2 sets

Type : Bridge Saw

Use : Marble

Voltage : 380v

Power : 10 kW

Dimension(L*W*H) : 3000*2000

Weight : 3500 kg

Warranty : 1 Year

Key Selling Points : Automatic

Cutting thickness (max) : 50mm

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Core Components : Pressure vessel, motor, Bearing

Control system : Self developed

Processing size : 3000*2000mm

Blade Diameter : 350mm

Cutting thickness : 50mm

Platform flap angle : 0-85

Head rotation angle : 0-360

Nose tilt angle : 0-45

host : 10kw

Transmission mode : x/y/a axis gear rotation, z-axis ball screw

Driving mode : Servo / step

Contact Now

5 Axis Cnc Stone Granite Marble Bridge Saw Cutting Machine For Natural Rock Carving

5 Axis Cnc Marble And Granite Bridge Saw Cutting Machine For Natural Rock Carving

Product Description

5 axis cnc stone granite marble bridge saw cutting machine for natural rock carving

5 Axis Bridge Stone Cutting Machine Advantages:

1. The machine head can swing 360 degrees freely, and the plate can be cut at any angle and shape

2. It can be used for cutting large plate, 45 degree chamfering, pot hole, stove hole and oblique line cutting

3. The platform is turned over at 85 degrees to facilitate loading and unloading.

4. The operation is simple and the control system can input data.

5. Equipped with grinding wheel device, it can polish the table face and cutting surface.

Superstar Brand Stone CNC Router, providing various size and models. With 20years experience , we accpet ODM and OEM according to requirements. Besides, we can suggest the suitable woodworking production line based on customer's factory and personnel situation.

Technical Paramaters:
Processing size	3000*2000mm
Blade Diameter	350mm
Cutting thickness	50mm
Control system	Self developed
Platform flap angle	0-85
Head rotation angle	0-360
Nose tilt angle	0-45
host	10kw
Transmission mode	x/y/a axis gear rotation, z-axis ball screw
Driving mode	Servo / step

PS: All the working area and specifications can be customized according to your requests.

Detailed Images

Application:

Full automatic five axis infrared bridge cutting machine, multi language conversion, table processing by one machine, x-y-z-a-b five axis linkage, more widely used, simple operation and stronger practicability.

used for cutting, chamfering, edge grinding, slotting, drilling, circular arc and other special-shaped processing.

We have exported more than 95 countries like UK, Turkey, Italy, France, German, Russia,Canada, USA, Mexico, Vietnam, Thailand, Korea, India,etc.

Superstar CNC products provide Continuous innovation, easier work, better life.

Why Choose Us

FAQ

Q: Are you manufacturer ? A: Yes,We are factory since 2003. Also we have more than 10 countries overseas warehouse and department. Q: Can I get a machine according to my own requirements? A: Sure.We accept OEM and ODM Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and english instruction book send to you with machine. If there is still have any question, we will provide free professinal guide for you until you could use machine well. Q:What’s your MOQ and delivery? A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you. Q: How is your after sales service? A: Our sales are online for 24-hours. We can also supply overseas install service. Q: If my machine is broken. Can you repair it for me? A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
